Introduction

Every business runs on rules. When a discount exceeds 20%, it needs manager approval. End dates must come after start dates. Priority customers get different pricing. Sales totals need to update when quantities change. Today, these rules live in people's heads, scattered across spreadsheets, or buried in email threads. Someone manually checks each entry, calculates every total, and catches errors after they've already caused problems. Teams waste hours on repetitive calculations and still miss critical validations. Different people apply rules differently, and when that key person is out sick, the whole process breaks down.

The Logic Builder transforms these scattered rules into living, breathing intelligence within your data. No more manual checking if order totals match line items. No more catching date conflicts after schedules are published. No more wondering if the right approver saw that high-value purchase. Your business rules become guardrails that guide every interaction, calculations that update instantly, and approval flows that route themselves. It's about encoding your expertise into the system itself, ensuring consistency across every team member, and building a business that enforces its own best practices automatically.

What is the Logic Builder?

The Logic Builder is a visual interface for creating business logic without code. Through drag-and-drop blocks and intuitive formulas, you define how your data validates, calculates, and flows through your organization.

Build validation rules that prevent errors before they happen, create calculated fields that update automatically, design dynamic forms that adapt based on user input, and establish approval workflows that route themselves. All without writing a single line of code.

Getting Started

Accessing the Logic Builder

The Logic Builder lives within your Dataset configuration, ready to add intelligence to any field. Navigate to your Board and ensure you're in Build Mode—look for the toggle in your left sidebar. Once enabled, click on any column header to reveal configuration options. Depending on the column type and your needs, you'll see options like "Set Validation Logic," "Calculate Value," or "Options Filter Logic."

Each option opens the Logic Builder with a context-appropriate interface. Validation rules present condition builders. Calculated values show formula editors. The builder adapts to your intent, providing the right tools for the task at hand.

Quick Start: Your First Validation Rule in 5 Minutes

Let's build a simple validation rule that ensures project end dates always come after start dates.

Step 1: Enter Build Mode

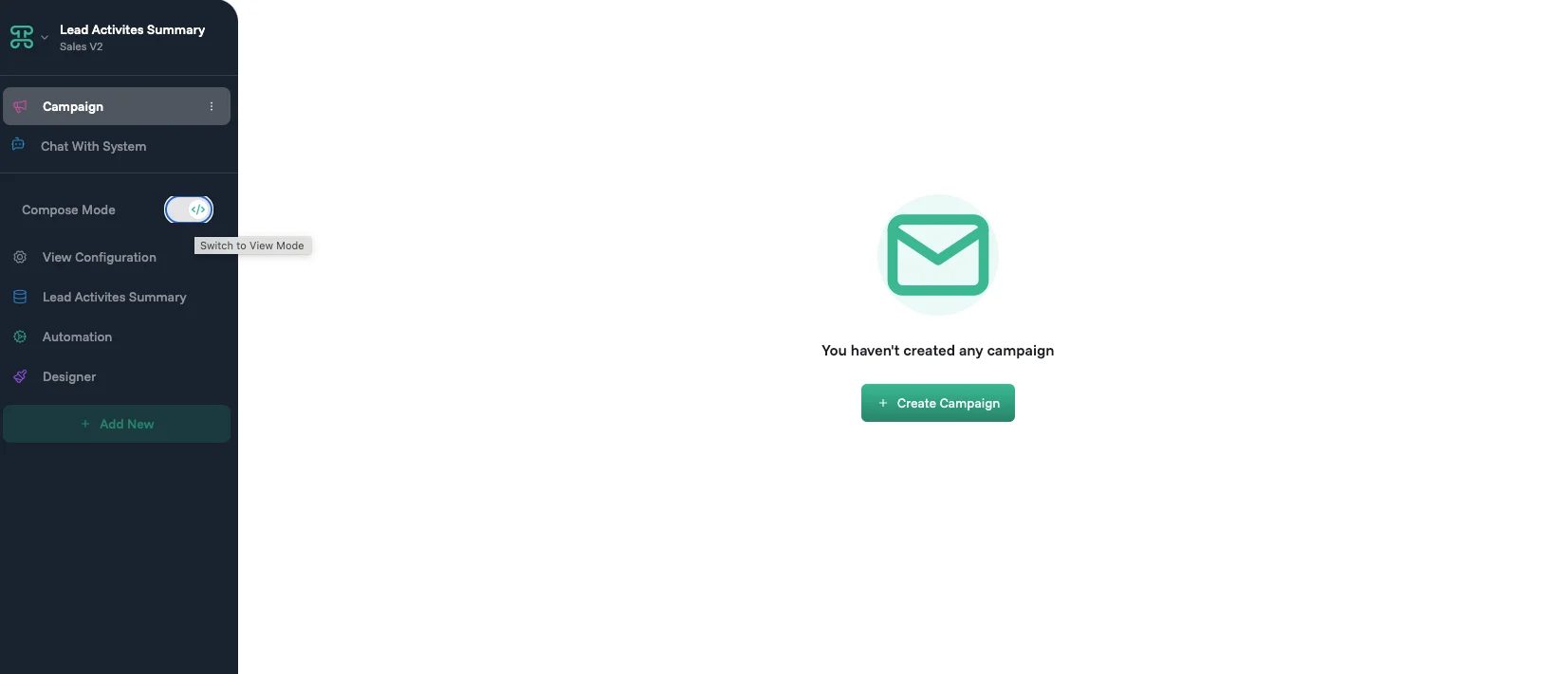

Navigate to your Board and toggle on Build Mode in the left sidebar.

Step 2: Select Your Field

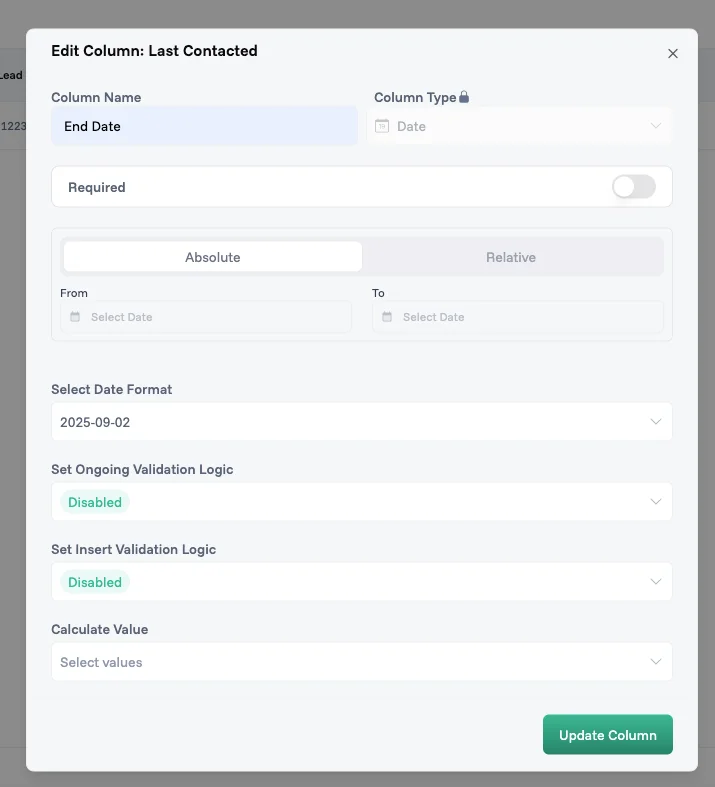

Click on the "End Date" column header to open configuration options.

Step 3: Add Validation Logic

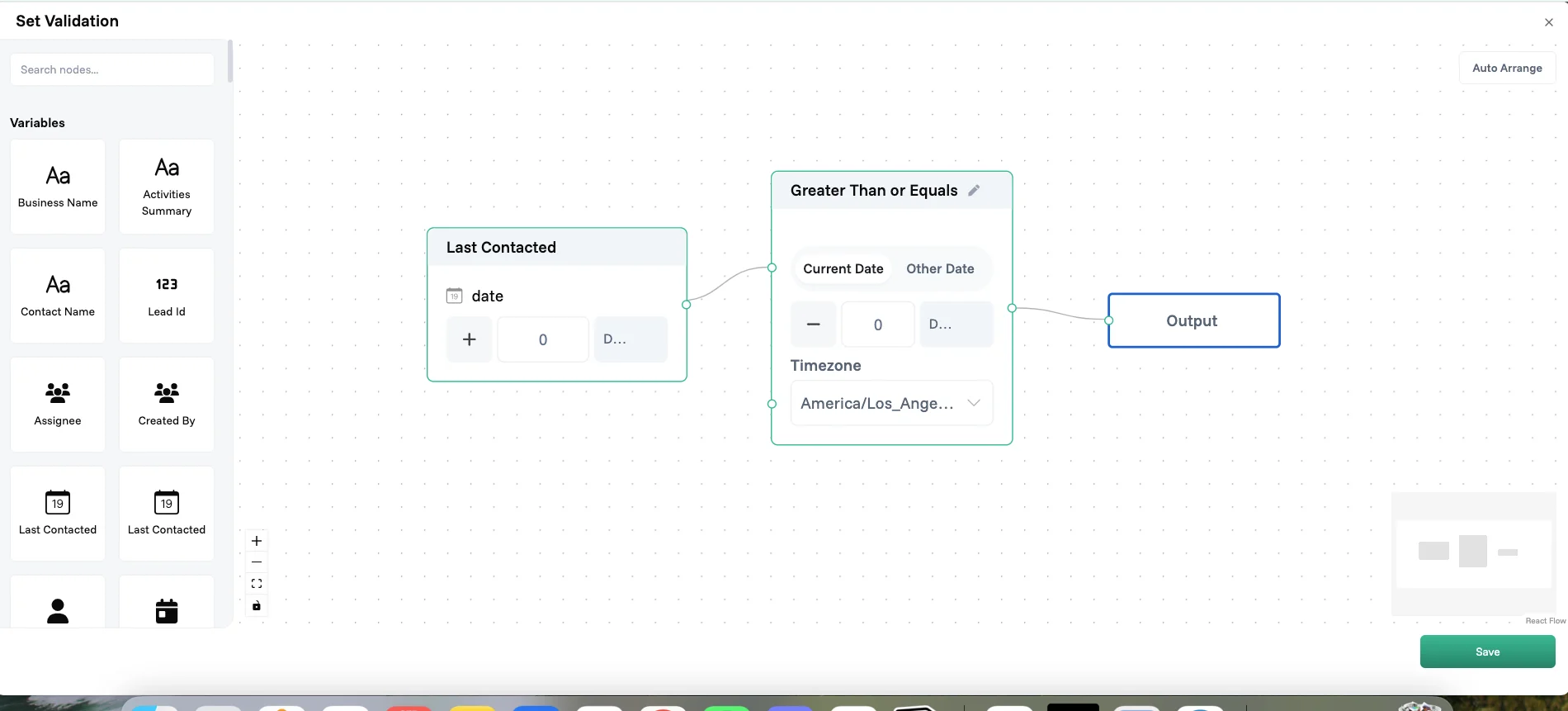

Click "Set Validation Logic" to open the Logic Builder.

Step 4: Write Your Formula

CurrentValue >= @StartDate

Step 5: Save and Test

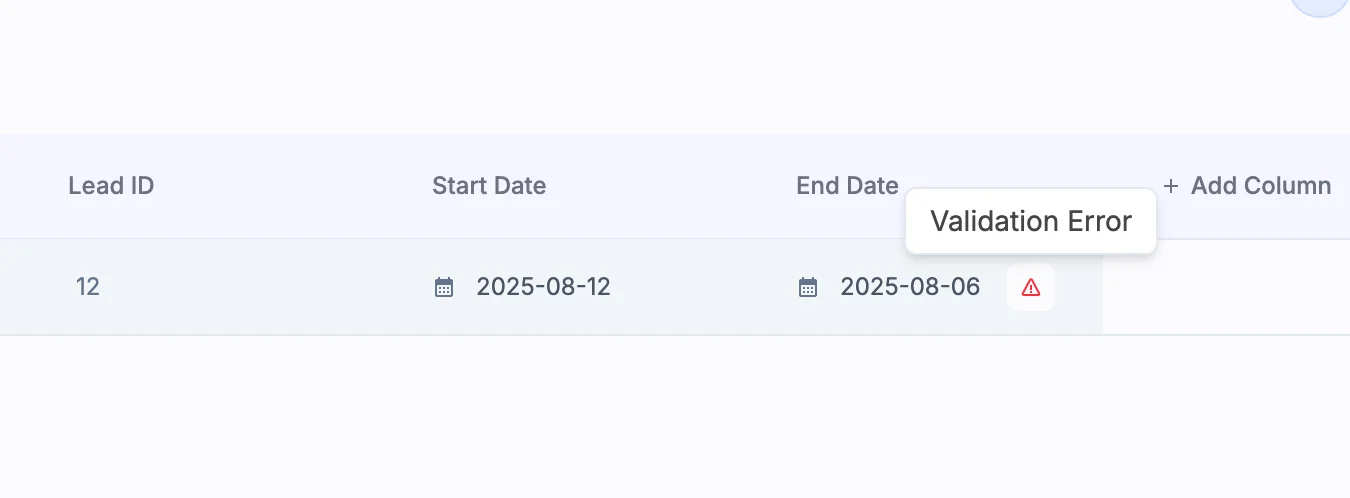

Click Save. Try entering an end date before the start date—you'll see an instant validation warning!

🎉 Congratulations! You've just created your first validation rule. This simple rule will save hours of manual checking and prevent timeline conflicts.

Set Validation Operations Reference Table

Input Nodes

Node Type	Description	Use Case	Configuration	Output
Custom Input	Static/predefined values	Constants, config	Value: "API_KEY_123"	Static value
Dynamic User Input	Runtime user data	Form inputs	Field: "email", Type: "string"	User-provided value

Text Operations

Operation	Description	Example	Input	Output
Formulate Text	Creates text strings based on templates or formulas	Combine variables with static text	Template: "Hello {name}", Variables: {name: "John"}	"Hello John"
Concatenate	Joins multiple text strings into one	Join first and last name	"Hello", " ", "World"	"Hello World"
Replace	Finds and replaces text within a string	Replace words in text	Text: "Hello World", Find: "World", Replace: "Universe"	"Hello Universe"
Uppercase	Converts all characters to uppercase	Convert to capital letters	"hello"	"HELLO"
Lowercase	Converts all characters to lowercase	Convert to small letters	"HELLO"	"hello"
Substring	Extracts portion of text	Get first 5 characters	Text: "Hello World", Start: 0, Length: 5	"Hello"
Length	Returns character count	Count text length	"Hello"	5
Split	Divides text into array	Split by comma	Text: "apple,banana,orange", Delimiter: ","	["apple", "banana", "orange"]
Join	Combines array into string	Join with comma	Array: ["apple", "banana"], Delimiter: ","	"apple,banana"
Starts With	Checks if text begins with specific characters	Check prefix	Text: "Hello World", Prefix: "Hello"	true
Ends With	Checks if text ends with specific characters	Check suffix	Text: "Hello World", Suffix: "World"	true
Index Of	Finds position of substring	Find word position	Text: "Hello World", Search: "World"	6
Pad Start	Adds characters to beginning	Add leading zeros	Text: "5", Length: 3, Pad: "0"	"005"
Pad End	Adds characters to end	Add trailing zeros	Text: "5", Length: 3, Pad: "0"	"500"
Repeat	Duplicates text multiple times	Repeat text	Text: "Ha", Count: 3	"HaHaHa"

Arithmetic Operations

Operation	Description	Example	Input	Output
Add	Addition of numbers	Sum values	5, 3	8
Subtract	Subtraction of numbers	Find difference	10, 4	6
Multiply	Multiplication of numbers	Calculate product	6, 7	42
Divide	Division of numbers	Calculate quotient	20, 4	5
Modulo	Remainder after division	Find remainder	10, 3	1
Round	Round to nearest integer	Round decimal	3.7	4
Floor	Round down to integer	Floor value	3.9	3
Ceil	Round up to integer	Ceiling value	3.1	4
Absolute	Get positive value	Remove negative	-5	5
Square	Calculate square	Square number	4	16
Minimum	Find smallest value	Get minimum	5, 3, 9	3
Maximum	Find largest value	Get maximum	5, 3, 9	9
Random	Generate random 0-1	Random decimal	None	0.7392...
Random Between	Random in range	Random integer	Min: 1, Max: 10	7

Advanced Math

Operation	Description	Example	Input	Output
Power	Raise to power	Calculate exponent	Base: 2, Exponent: 3	8
Square Root	Calculate square root	Find root	16	4
Exponential	Calculate e^x	Natural exponent	1	2.71828...
Natural Log	Natural logarithm (ln)	Log base e	e (2.71828...)	1
Log10	Base-10 logarithm	Log base 10	100	2
Log2	Base-2 logarithm	Log base 2	8	3
Factorial	Calculate factorial	n!	5	120
GCD	Greatest Common Divisor	Find GCD	12, 18	6
LCM	Least Common Multiple	Find LCM	4, 6	12

Array Operations

Operation	Description	Example	Input	Output
Includes in Array	Check if value exists	Find element	Array: [1,2,3], Value: 2	true
Nth Element	Get element at position	Access by index	Array: [10,20,30], Index: 1	20
First Element	Get first element	Get start	[1,2,3]	1
Last Element	Get last element	Get end	[1,2,3]	3
Slice Array	Extract portion	Get subarray	Array: [1,2,3,4,5], Start: 1, End: 3	[2,3]
Reverse Array	Reverse order	Flip array	[1,2,3]	[3,2,1]
Unique Values	Remove duplicates	Get distinct	[1,2,2,3]	[1,2,3]
Flatten Array	Convert nested to flat	Flatten nested	[[1,2],[3,4]]	[1,2,3,4]
Remove Empty	Filter out empty values	Clean array	[1,null,3,"",5]	[1,3,5]
Count Elements	Total element count	Array length	[1,2,3]	3
Sum of Array	Sum all numbers	Total sum	[1,2,3]	6
Average	Calculate mean	Find average	[2,4,6]	4
Min in Array	Find smallest	Get minimum	[5,2,8]	2
Max in Array	Find largest	Get maximum	[5,2,8]	8

Statistics

Operation	Description	Example	Input	Output
Median	Find middle value	Get median	[1,3,5]	3
Mode	Most frequent value	Find mode	[1,2,2,3]	2
Std Deviation	Measure of variation	Calculate SD	[2,4,6,8]	2.58...
Variance	Average squared differences	Calculate variance	[2,4,6,8]	6.67
Count Non-Empty	Count valid values	Count filled	[1,null,3,"",5]	3
Percentile	Value below % of data	75th percentile	Array: [1,2,3,4,5], Percentile: 75	4
Quartile	Divide into quarters	Find quartiles	[1,2,3,4,5,6,7,8]	Q1:2.5, Q2:4.5, Q3:6.5
Rank	Assign rank order	Rank values	[5,2,8,2]	[3,1,4,1]
Correlation	Measure relationship	Find correlation	X: [1,2,3], Y: [2,4,6]	1.0
Forecast	Predict future values	Project trend	Historical: [10,15,20], Periods: 2	[25,30]
Trend	Identify direction	Find trend	[10,15,20,25]	"increasing"
Growth Rate	Calculate % change	Find growth	Start: 100, End: 150	50%

Date/Time Operations

Operation	Description	Example	Input	Output
Date Add	Add time to date	Add days	Date: "2024-01-01", Add: 7, Unit: "days"	"2024-01-08"
Date Subtract	Subtract time/find difference	Subtract days	Date: "2024-01-08", Subtract: 7, Unit: "days"	"2024-01-01"
Date Format	Change date format	Format date	Date: "2024-01-01", Format: "MMM DD, YYYY"	"Jan 01, 2024"
Current DateTime	Get current timestamp	Get now	None	"2024-01-15T10:30:00Z"
Time Subtract	Difference between times	Time elapsed	Start: "10:00", End: "14:30"	"4:30"
Convert Date	Transform date formats	Convert format	Date: "01/15/2024", To: "ISO"	"2024-01-15"

Fetch Operations

Operation	Description	Example	Input	Output
Fetch	Make HTTP requests to external APIs	Get user data	URL: "https://api.example.com/users/123", Method: "GET"	JSON response data

Logic Operations

Operation	Description	Example	Input	Output
Condition	Evaluate if-then-else logic	Check user age	If: age >= 18, Then: "Adult", Else: "Minor"	"Adult" or "Minor"
Branch	Split flow into multiple paths	Route by user type	Input: userType, Branches: ["admin", "user", "guest"]	Routes to matching path

AI Operations

Operation	Description	Example	Input	Output
AI Generator	Generate content using AI	Create personalized text	Prompt: "Write a welcome email for {name}", Variables: {name: "John"}	"Dear John, Welcome to our platform..."

Advanced

Operation	Description	Example	Input	Output
Code Block	Execute custom JavaScript code	Custom logic implementation	Code: return input * 2 + 10;, Input: 5	20
Cast	Convert data types	Type conversion	Value: "123", To: "number"	123

Comparison Operations

Operation	Description	Example	Input	Output
Contains	Check substring presence	Find text	Text: "Hello World", Search: "World"	true
Equals	Check exact match	Compare values	Value1: 5, Value2: 5	true
Not Equals	Check if different	Not equal	Value1: 5, Value2: 3	true
Greater Than	Check if larger	Compare size	Value1: 10, Value2: 5	true
Less Than	Check if smaller	Compare size	Value1: 3, Value2: 7	true
Greater or Equal	Check if >=	Compare with equal	Value1: 5, Value2: 5	true
Less or Equal	Check if <=	Compare with equal	Value1: 3, Value2: 5	true
Is Present in List	Check list membership	In list	Value: "apple", List: ["apple","banana"]	true
Is Empty	Check if null/empty	Check empty	""	true
Is Not Empty	Check if has content	Check filled	"Hello"	true
Length In	Length matches values	Length check	Text: "Hello", Lengths: [5,10]	true
Length >=	Length at least	Min length	Text: "Hello", Min: 3	true
Length <=	Length at most	Max length	Text: "Hi", Max: 5	true

Joiners

Operation	Description	Example	Input	Output
AND	All conditions true	Logical AND	Condition1: true, Condition2: true	true
OR	Any condition true	Logical OR	Condition1: false, Condition2: true	true

Encoding/Decoding Operations

Operation	Description	Example	Input	Output
Base64 Encode	Convert to Base64	Encode text	"Hello"	"SGVsbG8="
Base64 Decode	Convert from Base64	Decode text	"SGVsbG8="	"Hello"
URL Encode	Encode for URLs	URL safe	"hello world"	"hello%20world"
URL Decode	Decode from URLs	URL decode	"hello%20world"	"hello world"
HTML Encode	Convert HTML entities	HTML safe	"<div>"	"<div>"
HTML Decode	Decode HTML entities	HTML decode	"<div>"	"<div>"
Encode (Generic)	Custom encoding	Custom encode	Text: "data", Algorithm: "custom"	Encoded output
Decode (Generic)	Custom decoding	Custom decode	Encoded: "data", Algorithm: "custom"	Decoded output

Hash & Crypto

Operation	Description	Example	Input	Output
MD5 Hash	Generate MD5 hash	Hash text	"password"	"5f4dcc3b5aa765d61d8327deb882cf99"
SHA1 Hash	Generate SHA1 hash	Hash text	"password"	"5baa61e4c9b93f3f0682250b6cf8331b7ee68fd8"
SHA256 Hash	Generate SHA256 hash	Hash text	"password"	"5e884898da28047151d0e56f8dc62927..."
Hash (Config)	Configurable hash	Custom hash	Text: "data", Algorithm: "SHA512"	Hash output
Encrypt	Encrypt data	Secure data	Data: "secret", Key: "key123"	Encrypted string
Decrypt	Decrypt data	Decode data	Encrypted: "xyz", Key: "key123"	"secret"

Utility Operations

Operation	Description	Example	Input	Output
Sleep/Delay	Pause execution	Wait 1 second	Duration: 1000ms	Pauses flow
Throttle	Limit execution rate	Max 1 per second	Interval: 1000ms	Rate limited execution
Delay	Pause execution for specified time	Delay 2 seconds	Time: 2000ms	Execution paused
Debounce	Delay until idle	Wait for pause	Wait: 500ms	Delayed execution
Memoize/Cache	Store for reuse	Cache result	Key: "calc1", Value: Result	Cached value
Security Operation	Apply security checks	Validate input	Input: User data	Validated/Sanitized
Utility Operation	General purpose	Custom logic	Various inputs	Custom output
UUID Generator	Generate unique ID	Create UUID	None	"550e8400-e29b-41d4-a716-446655440000"

Logic Builder Types

1. Validation Rules

Validation rules are your data quality guardians. Every typo, every impossible date, every out-of-range value that enters your system creates a ripple effect—reports show wrong numbers, automations fail, teams make decisions on bad data. That invoice with a negative amount. The project end date before it started. The order quantity exceeding your entire inventory. Validation rules catch these errors at the source, preventing bad data from ever entering your system and eliminating hours of cleanup work.

Building Validation Logic

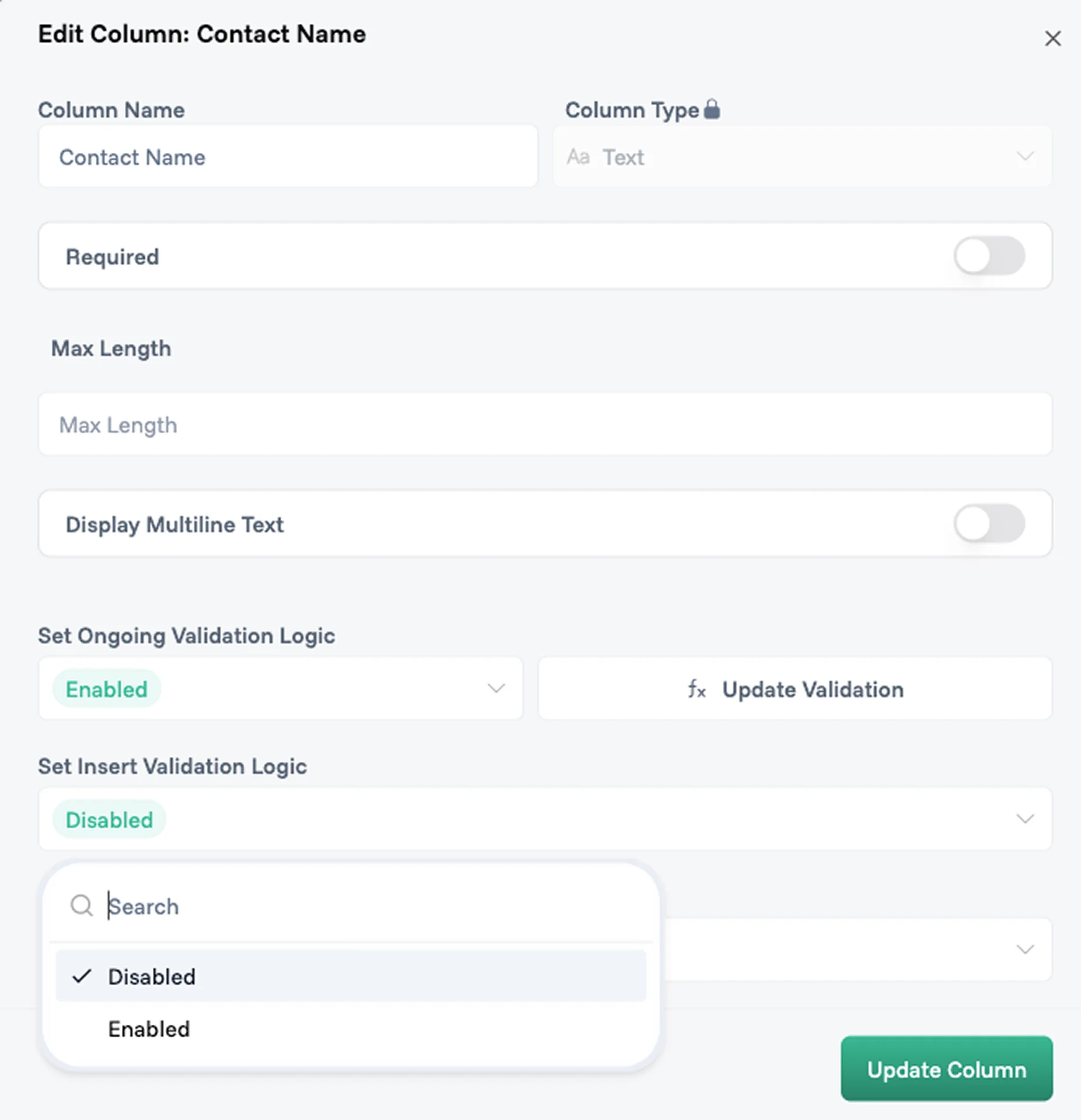

When you click "Set Validation Logic" on a field, the Logic Builder presents a formula editor where you'll define your rule. You can set validation for different scenarios:

Set Ongoing Validation Logic applies rules to data updates and modifications after the record exists. This ensures data integrity is maintained throughout the record's lifecycle.

Set Insert Validation Logic validates data only when new records are first created. Use this for rules that should apply during creation but may be relaxed for updates.

Reference other fields using the @ symbol—@FieldName pulls values from the same record. Use comparison operators (>, <, ==, !=) and logical operators (AND, OR, NOT) to build complex conditions.

A simple validation to ensure a task assignee is different from the task creator (preventing self-assignment):

CurrentValue != @CreatedBy

2. Calculated Values

Calculated fields bring spreadsheet-style intelligence directly into your database. Today, your team manually calculates totals, updates percentages, and adjusts prices—each calculation a chance for error, each update taking precious minutes. That commission spreadsheet maintained outside the system. Project percentages updated manually every Friday. Pricing formulas only Sarah knows. Calculated values automate these computations, ensuring every total is accurate, every percentage updates instantly, and formulas apply consistently regardless of who's working.

Calculation Triggers

Control when calculations execute by choosing the appropriate trigger:

On Row Creation runs once when a record is created. Perfect for setting initial values like default priorities or generating unique identifiers. The calculation locks in that initial value and doesn't change unless manually edited.

On Focus recalculates whenever a user clicks into the field. Ideal for values that might change based on other edits but don't need constant updates. A "Days Until Due" field might recalculate each time someone views it.

On Edit updates whenever dependent fields change. Your bread and butter for most calculations—totals that sum line items, markups that adjust with costs, scores that aggregate multiple factors. The calculation runs automatically, keeping values synchronized.

On Click waits for explicit user action. Place a calculate button in the field for expensive operations or when you want users to control timing. Useful for complex calculations that call external services or when you need to snapshot values at specific moments.

Always continuously recalculates in real-time as any dependent data changes. Best for critical metrics that must stay current, like inventory levels or live dashboard totals. Use sparingly as it can impact performance with complex calculations.

Never prevents automatic calculation entirely. The field can only be updated through manual entry or explicit actions. Useful for values you want to calculate once and preserve, or fields that serve as manual overrides to calculated values.

Formula Syntax

The Logic Builder speaks a language similar to spreadsheet formulas but with database awareness. Reference fields with @FieldName. Use standard operators (+, -, *, /) and parentheses for order of operations.

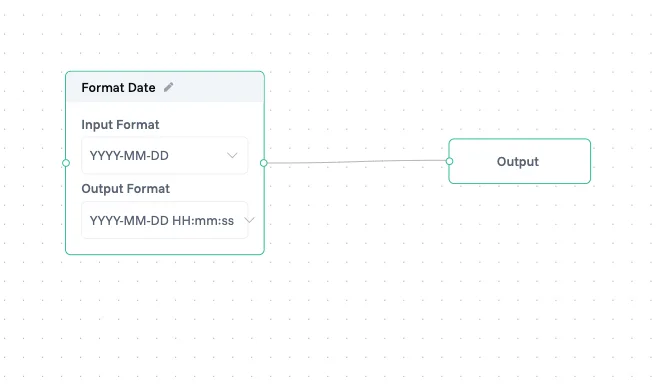

Format dates for display:

DATE_FORMAT(@DueDate, "YYYY-MM-DD HH:MM:ss")  // Output: Jan 15, 2025 05:12:45

Chained Calculations

Calculated fields can reference other calculated fields, creating sophisticated derived data. A "Subtotal" field sums line items. A "Tax" field calculates from the subtotal. A "Total" field adds them together. Change any input, and the entire chain updates automatically.

3. Options Filter Logic

Static forms frustrate users with irrelevant options. A purchase order form showing IT vendors when buying office supplies. A task assignment dropdown listing employees from other departments. These cluttered interfaces slow work and increase errors. Options Filter Logic transforms your drop downs and reference fields into intelligent selectors that adapt based on context, showing only the choices that make sense.

Department-Based Expense Categories

Filter expense categories based on selected department:

//Show only relevant expense types for each department
IF(@Department == "Sales",
    SHOW_OPTIONS(["Travel", "Meals", "Hotels"]),
IF(@Department == "IT",
SHOW_OPTIONS(["Software", "Hardware", "Cloud Services"]),
SHOW_OPTIONS(["Office Supplies", "Other"]))) //All other departments

This basic example shows how selecting "Sales" in the Department field instantly updates the Expense Category dropdown to show only sales-related options, while selecting "IT" shows technology expenses. Clean, simple, and prevents incorrect categorization.

4. Approval Workflows

Approval workflows ensure critical decisions follow proper authorization chains. Right now, high-value purchases slip through without oversight, urgent requests sit in email inboxes, and no one knows if that $50,000 order got approved. Someone circumvents the process because they don't know the rules. Requests bounce between departments with unclear ownership. The Logic Builder's approval conditions automatically route requests to the right people, enforce your authorization policies, and ensure nothing falls through the cracks—turning chaos into a smooth, predictable flow.

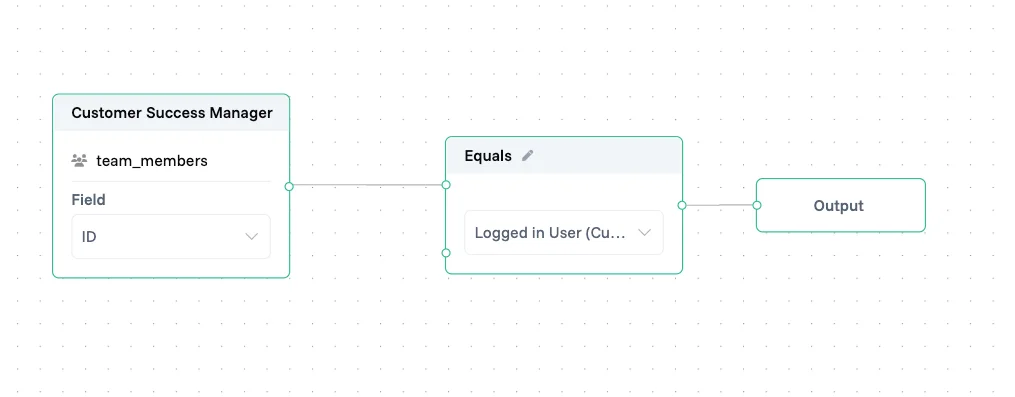

Manager Approval with User Validation

Set approval condition to ensure only the designated manager who is logged in can approve the requests:

Best Practices

Design Principles

Start Simple, Iterate Complexity — Begin with basic rules that handle the common case. A validation checking dates might start as @EndDate > @StartDate. As you discover edge cases, enhance it: account for timezone differences, business days only, or blackout periods. Each iteration makes your logic more robust without overwhelming initial implementation.

Make Logic Self-Documenting — Future maintainers (including yourself) need to understand your logic's intent. Use clear field names: @CustomerAcquisitionDate beats @Date1. Structure complex formulas with line breaks and indentation. Add comments in description fields explaining business reasoning, not just technical implementation.

Design for Change — Business rules evolve. Hard-coding values creates brittleness. Instead of IF(@Amount > 5000, "Requires Approval", "Auto-Approved"), reference a configuration field: IF(@Amount > @ApprovalThreshold, "Requires Approval", "Auto-Approved"). When thresholds change, update one field instead of hunting through dozens of formulas.

Testing Strategies

Test Edge Cases — Your logic works for typical values, but what about extremes? Test with zero, negative numbers, very large values. Try empty fields, special characters in text, dates far in the past or future. If your formula divides by a field, what happens when it's zero?

Validate Cross-Field Dependencies — When fields depend on each other, test all combinations. If status determines which fields are required, check every status. If calculations chain together, verify the entire flow from input to final result. One broken link breaks the entire chain.

Use Test Records — Create dedicated test records to verify logic without affecting real data. Name them clearly: "TEST - Do Not Delete - Validation Testing". Build a suite covering your main scenarios. Run through them after major logic changes to ensure nothing broke.

Maintenance

Version Control Through Documentation — While the Logic Builder doesn't version formulas, you can track changes manually. Before modifying complex logic, copy the current formula to the field description with a date stamp. This creates an audit trail and recovery path if changes introduce issues.

Monitor Performance Impact — Complex calculations on large datasets can slow your system. If users report sluggish forms, review your logic. Consider moving expensive calculations from "On Edit" to "On Focus" or "On Click". Sometimes splitting one complex calculation into several simpler ones improves performance.

Regular Logic Audits — Schedule quarterly reviews of your logic rules. Business processes change, making some rules obsolete. New patterns emerge that could be automated. Logic that seemed clear six months ago might need documentation updates. These audits keep your system aligned with actual business needs.

Troubleshooting

Common Issues

"Circular Reference Detected"

This error appears when fields reference each other in a loop. Field A depends on Field B, which depends on Field C, which depends on Field A. The Logic Builder prevents saving such configurations.

Solution: Map out field dependencies on paper. Identify the cycle. Usually, one calculation should be "primary" with others deriving from it. Restructure your logic to flow in one direction.

Validation Always Fails

Your validation logic might be too restrictive or checking the wrong condition. Common culprits include comparing different data types (text vs number), timezone mismatches in date comparisons, or logic that can never evaluate to true.

Solution: Temporarily simplify your validation to isolate the issue. Start with true (allows everything), then add conditions one by one until you find the problem. Check data types match on both sides of comparisons.

Calculations Show Wrong Results

Suspect order of operations issues, incorrect field references, or data type mismatches. The formula might be correct but operating on unexpected values.

Solution: Break complex calculations into steps. Create temporary calculated fields for each sub-calculation. This shows intermediate values, making it easier to spot where things go wrong. Check that referenced fields contain the expected data type and format.

Options Not Filtering

Dynamic filters might reference the wrong fields, use incorrect syntax, or have logic that never matches actual data.

Solution: Log the values being compared. Add a calculated field showing @Category + " | " + @Subcategory to see actual values. Ensure your filter conditions match these exactly, including case sensitivity and spacing.

Performance Issues

Slow Form Loading

Too many "On Edit" calculations can make forms sluggish. Each keystroke triggers recalculation of dependent fields.

Solution: Audit your calculation triggers. Move non-critical calculations to "On Focus" or "On Click". Consider whether some calculated values could be computed during a nightly batch process instead of real-time.

Timeout Errors

Extremely complex logic or calculations over large datasets might exceed processing limits.

Solution: Simplify nested IF statements using lookup tables. Instead of 20 nested conditions for pricing tiers, create a Pricing Tiers dataset and use a reference field. Break monolithic calculations into smaller, focused pieces.

Next Steps

Explore related Proma features that enhance automation capabilities:

• @Automation Engine - Orchestrates multi-step workflows using Logic Builder's validated and calculated data.

• @Smart Columns - Add intelligent, automated fields to your datasets

• @Interfaces - Build custom user interfaces that trigger and display automations

Have questions? Our team is ready to help at [email protected]
